How to set up the Mercku 5G CPE

Ensure that your Mercku 5G CPE is powered off before performing the steps below.

1. Insert a data-enabled micro SIM card into the SIM card slot on the bottom of the device.
2. Close the SIM Slot cover once the SIM is properly inserted.

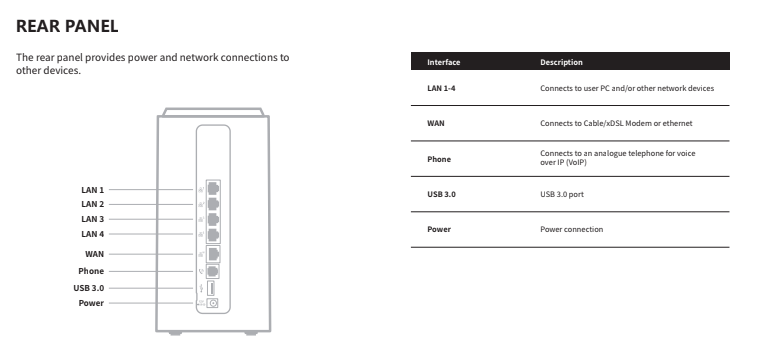

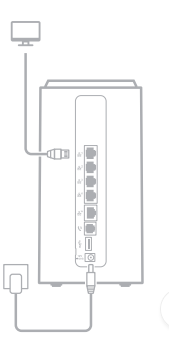

3. Insert the ethernet cable into LAN port 1 on the back panel of the Mercku 5G CPE, and the other end into the ethernet port of a computer or laptop to configure the device.
4. Connect the power adapter to the socket on the back panel of your Mercku 5G CPE and plug the other end into a wall outlet or power strip.

• The Power LED will light up to indicate that there's power in the device.
• If a connection has been established, the following LEDs will turn solid blue after a minute:
  - Power
  - LAN port 1
  - Wi-Fi
  - LTE
  - WAN (if the connection is being used)
